Safety Valve DN8(1/4") d0 8

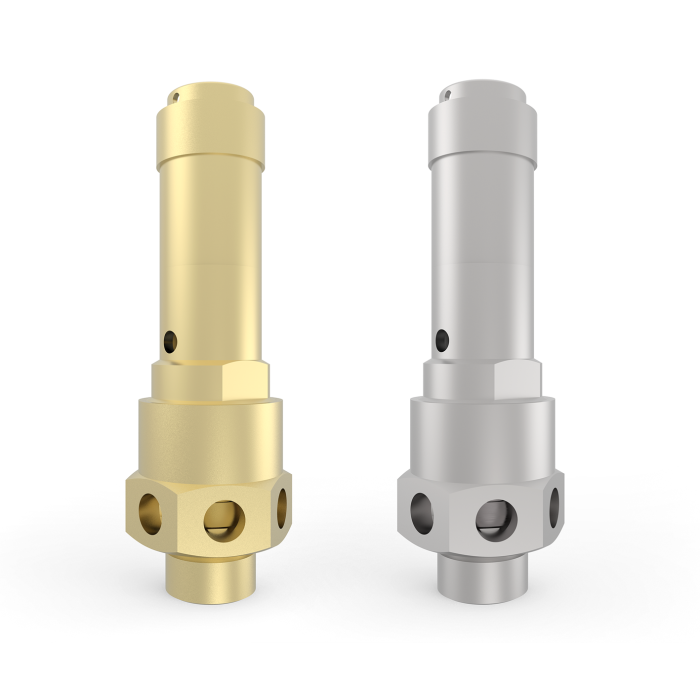

The product shown in the picture may differ from the product sold.
Safety Valve DN8(1/4") d0 8
Article-No.: 06C02.A002.000009
Price
POR
Description
Safety Valve, type tested
for air and similar gases
working temperature -20°C till +160°C
bonnet 1.4404 open with lifting device
inlet 1.4404 1/4''BSPP male thread
outlet 1.4404 with discharge holes
disc FPM (Viton)
orifice 8
spring 1.4571
for air and similar gases
working temperature -20°C till +160°C
bonnet 1.4404 open with lifting device
inlet 1.4404 1/4''BSPP male thread
outlet 1.4404 with discharge holes
disc FPM (Viton)
orifice 8
spring 1.4571
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 06C02.A002.000009 |
|---|---|
| Solution | Air Gases, Industry |
| Solution Area | Storage, Processes, Compressed Air, Steam, FKS |
| HEROSE Type Reference | IN_06C02 |
| Type (Series) | 06C02 |
| Maximum allowable temperature | -20.0 °C |
| Maximum allowable temperature | 160.0 °C |
| Opening pressure difference | 10% |
| body material | 1.4404 |
| Connection dimension inlet | 1/4'' |
| Connection inlet | male thread BSPP |
| Pressure range BAR | 6,00 - 7,99 bar |
| Pressure range KPA | 600,00 - 799,00 kPa |
| Pressure range PSI | 87,02 - 115,90 PSI |
Related Type
Datasheet ID: IN_06C02
Type 06C02
Datasheet ID: IN_06C02
