Strainer DN40(1 1/2") 56mesh

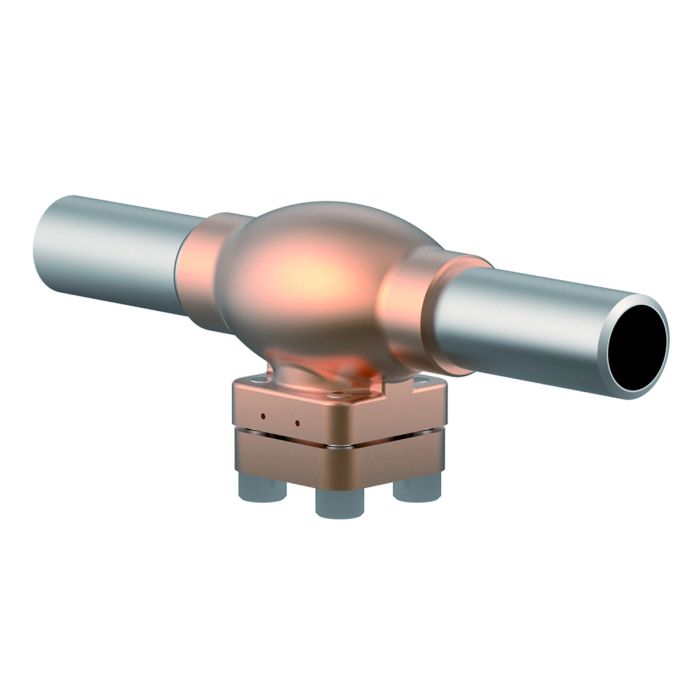

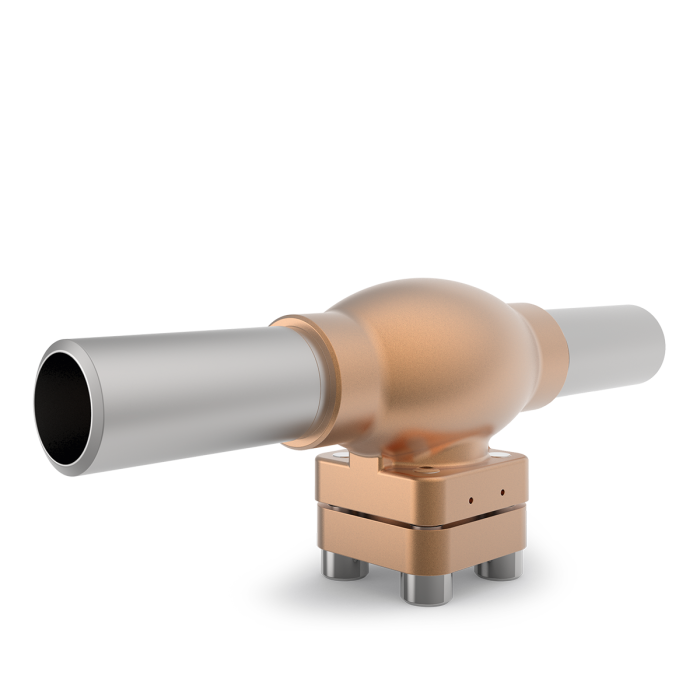

The product shown in the picture may differ from the product sold.
Strainer DN40(1 1/2") 56mesh
Article-No.: 08412.4048.0007
Price
POR
Description
Cryogenic strainer DN40 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
screen 1.4301 st.st. mesh size 0.25mm ( 55 mesh)
cap CC493K bronze
connection with brazed inox stubs
ø48.26mm x 2.77mm
face to face 290mm; height 88mm
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body CC491K bronze
screen 1.4301 st.st. mesh size 0.25mm ( 55 mesh)
cap CC493K bronze
connection with brazed inox stubs
ø48.26mm x 2.77mm
face to face 290mm; height 88mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 08412.4048.0007 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_08412_3 |
| Type (Series) | 08412 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 40 |
| Nominal pressure | PN 50 |
| Kvs-value | 22.6 MQH |
| body material | CC491K |
| CV-Value | 26,3 gal/min |
| Connection dimension inlet | 48,3 X 2,6 / 1.1/2'' S10 |
| Connection dimension outlet | 48,3 X 2,6 / 1.1/2'' S10 |
| Connection inlet | stainless steel |
| Connection outlet | stainless steel pipe |
| Canada approval | CRN 0E14408.5C |
Related Type
Datasheet ID: CR_08412_3
Type 08412 - Strainer
Datasheet ID: CR_08412_3
