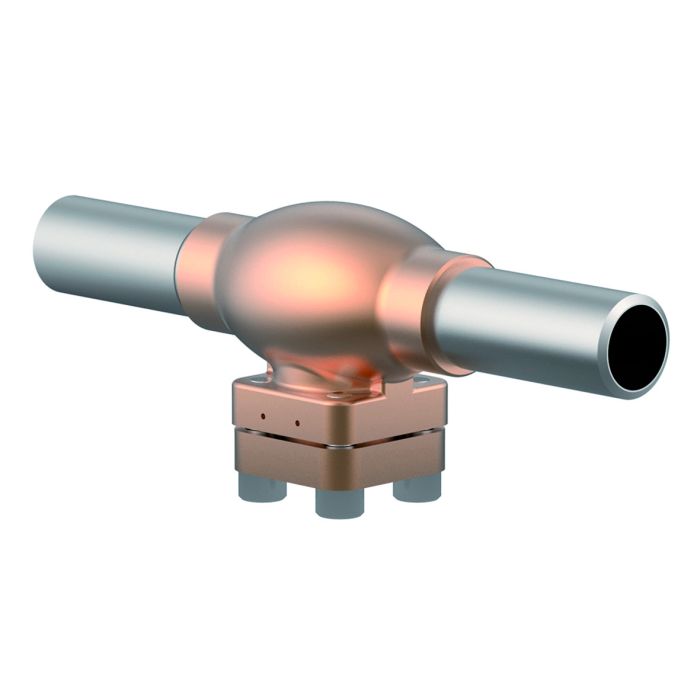

Type 08412 - Strainer

Datasheet ID: CR_08412_3
Field of application

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Certificates
EAC - Eurasian Conformity (010/2011)
EAC - Eurasian Conformity (032/2013)
type-examination for LNG (DIN EN 12567)
Gost Ukraine (Gost Ukraine)
Pressure Equipment Directive (2014/68/EU)
Operating Instructions
More Information
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_08412_3

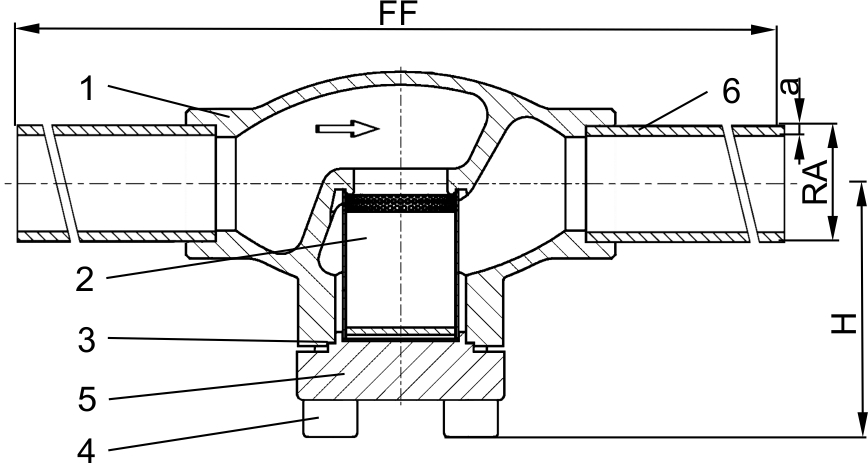

Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Strainer screen

1.4301

A 240 Grade 304

3

Bonnet gasket

PTFE

4

Bolts

1.4301/A2

A 194 B8

5

Cap

CC493K

B 505 UNS C93200

6

Stainless steel stubs

1.4306

A 312 TP304L
Versions

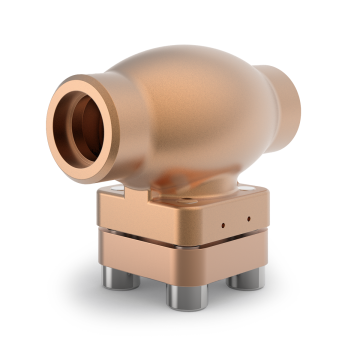

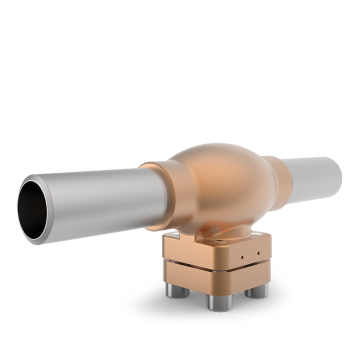

Type 08412 - Standard design

Technical data

Nominal size

DN

10

10

15

20

25

32

40

50

Dimension code

.X.

1012

1017

1521

2027

2533

3242

4048

5060

Face-to-face dimension

FF

210

210

235

235

265

265

290

310

Height

H

62

62

62

65

69

76

89

89

Outside pipe-Ø ISO 1127

RA

12.0

17.2

21.3

26.9

33.7

42.4

48.3

60.3

Wall thickness pipe ISO 1127

a

1.0

2.3

2.6

2.9

3.2

3.2

3.6

3.6

Outside pipe-Ø ASTM A312

RA

-

17.15

21.34

26.67

33.4

42.16

48.26

60.33

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Weight

ca. kg

0.75

0.75

1.0

1.2

1.8

2.5

4.1

6.0

Kvs-Value

m³/h

1.5

1.5

3.4

6.5

9.5

14.0

21.0

28.0

Cv-Value

gal/min

1.7

1.7

3.9

7.5

11.0

16.2

24.3

32.4
