Strainer DN15(1/2") 100mesh

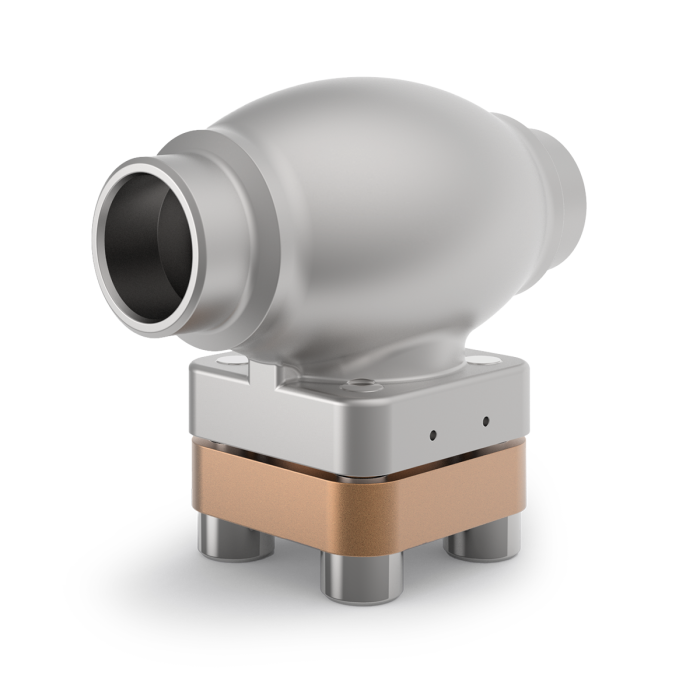

The product shown in the picture may differ from the product sold.
Strainer DN15(1/2") 100mesh
Article-No.: 08414.1521.5041
Price
POR
Description
cryogenic strainer DN15 PN50
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
screen Monel mesh size 0.15mm (100 mesh)
cap CC493K bronze
connection butt weld OD ø21.3mm x 2.0mm / 1/2"S10
face to face 85mm
cleaned and degreased for oxygen service
working temperature -196°C up to +120°C
body 1.4308 st.st.
screen Monel mesh size 0.15mm (100 mesh)
cap CC493K bronze
connection butt weld OD ø21.3mm x 2.0mm / 1/2"S10
face to face 85mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 08414.1521.5041 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| HEROSE Type Reference | CR_08414 |
| Type (Series) | 08414 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 15 |
| Nominal pressure | PN 50 |
| Kvs-value | 3.5 MQH |
| body material | 1.4308 |
| CV-Value | 4.0 gal/min |
| Connection dimension inlet | 21,3 x 2,0 / 1/2'' S10 |
| Connection dimension outlet | 21,3 X 2,0 / 1/2'' S10 |
| Connection inlet | welding end |
| Connection outlet | welding end |
| Canada approval | CRN 0E14408.5C |
Related Type
Datasheet ID: CR_08414

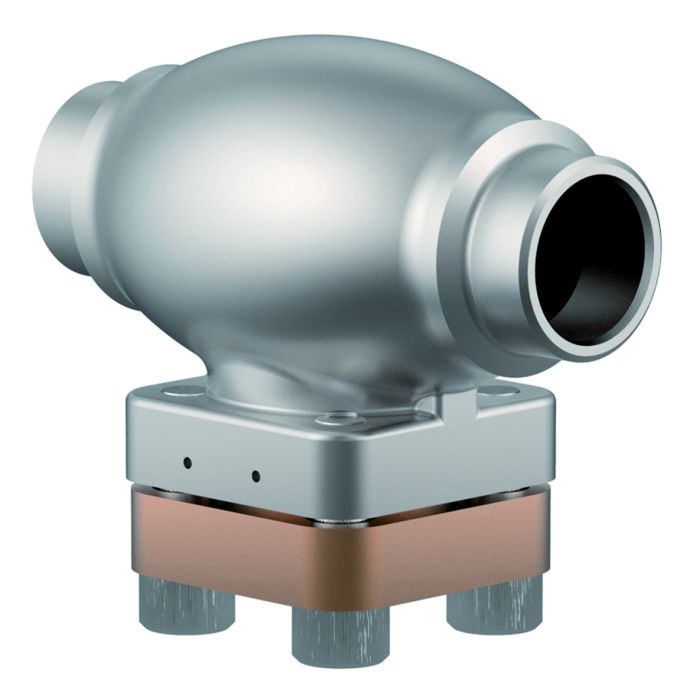

Type 08414 - Strainer
Datasheet ID: CR_08414
