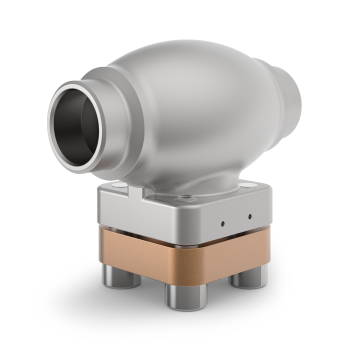

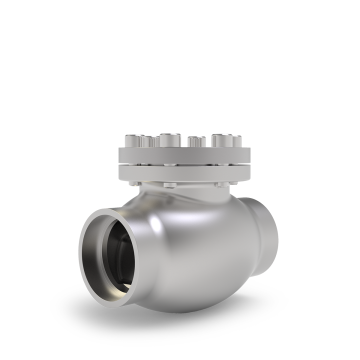

Type 08414 - Strainer
Click on the product image for a larger view.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Certificates
EAC - Eurasian Conformity (010/2011)
EAC - Eurasian Conformity (032/2013)
type-examination for LNG (DIN EN 12567)
Gost Ukraine (Gost Ukraine)
Pressure Equipment Directive (2014/68/EU)
Operating Instructions
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_08414 |
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Strainer screen |
1.4301 |
A 240 Grade 304 |
3 |
Bonnet gasket |
PTFE |
|
4 |
Bolts |
1.4301/A2 |
A 194 B8 |
5 |
Cap |
CC493K |
B 505 UNS C93200 |
Type 08414 - Standard design |
Technical data |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominal size |
DN |
10 |
15 |
15 |
20 |
25 |
32 |
40 |
40 |
50 |
65 |
80 |
100 |
150 |
Dimension code |
.X. |
1012 |
1517 |
1521 |
2026 |
2533 |
3238 |
4042 |
4048 |
5060 |
657x |
8088 |
0114 |
0168 |
Face-to-face dimension |
FF |
70 |
85 |
85 |
100 |
115 |
115 |
130 |
130 |
155 |
205 |
245 |
280 |
400 |
Height |
H |
62 |
62 |
62 |
65 |
69 |
76 |
89 |
89 |
89 |
125 |
150 |
166 |
215 |
Outside pipe-Ø ISO 1127 |
RA |
12.0 |
17.2 |
21.3 |
26.9 |
33.7 |
38.0 |
42.4 |
48.3 |
60.3 |
76.1 |
88.9 |
114.3 |
168.3 |
Wall thickness pipe ISO 1127 |
a |
1.0 |
1.6 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.9 |
3.2 |
6.0 |
7.1 |
Outside pipe-Ø ASTM A312 |
RA |
13.72 |
17.15 |
21.34 |
26.67 |
33.40 |
- |
42.16 |
48.26 |
60.33 |
73.03 |
88.90 |
114.3 |
168.3 |
Wall thickness pipe ASTM A312 |
a |
dimensions acc. to S10 or S40 |
||||||||||||
Socket depth |
b |
6 |
10 |
10 |
13 |
13 |
- |
13 |
13 |
16 |
16 |
16 |
20 |
20 |
Weight |
ca. kg |
0.6 |
0.75 |
0.8 |
0.9 |
1.2 |
1.8 |
3.1 |
3.1 |
4.7 |
8.9 |
13.6 |
18.0 |
48.0 |
Kvs-Value |
m³/h |
1.5 |
3.4 |
3.4 |
6.5 |
9.5 |
14.0 |
19.0 |
21.0 |
28.0 |
62.0 |
90.0 |
118.0 |
300.0 |
Cv-Value |
gal/min |
1.7 |
3.9 |
3.9 |
7.5 |
11.0 |
16.2 |
22.0 |
24.3 |
32.4 |
72.3 |
105.0 |
137.7 |
350.1 |
Product Variants
Filter our product by specific attributes| Name | Anschlussart Austritt | Anschlussart Eintritt | Anschlussdimension Austritt | Anschlussdimension Eintritt | Cv-Wert | Nennweite | Link to product |
|---|
- ...
- ...
Related Type
- Connection outlet:
- socket weld
- Connection inlet:
- socket weld connection
- Connection dimension outlet:
- 21,3 / 1/2''
- Connection dimension inlet:
- 21,3 / 1/2''
- CV-Value:
- 5,0 gal/min
- Kvs-value:
- 4.3 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 15
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- socket weld
- Connection inlet:
- socket weld connection
- Connection dimension outlet:
- 26,9 / 3/4''
- Connection dimension inlet:
- 26,9 / 3/4''
- CV-Value:
- 7,8 gal/min
- Kvs-value:
- 6.7 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 20
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- welding end
- Connection inlet:
- welding end
- Connection dimension outlet:
- 26,9 X 2,0 / 3/4'' S10
- Connection dimension inlet:
- 26,9 x 2,0 / 3/4'' S10
- CV-Value:
- 7,8 gal/min
- Kvs-value:
- 6.7 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 20
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- welding end
- Connection inlet:
- welding end
- Connection dimension outlet:
- 33,7 X 2,6 / 1'' S10
- Connection dimension inlet:
- 33,7 x 2,6 / 1'' S10
- CV-Value:
- 13,4 gal/min
- Kvs-value:
- 11.5 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 25
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- welding end
- Connection inlet:
- welding end
- Connection dimension outlet:
- 48,3 X 2,6 / 1.1/2'' S10
- Connection dimension inlet:
- 48,3 X 2,6 / 1.1/2'' S10
- CV-Value:
- 26,3 gal/min
- Kvs-value:
- 22.6 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 40
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- welding end
- Connection inlet:
- welding end
- Connection dimension outlet:
- 114,3 X 6,3 / 4'' S40
- Connection dimension inlet:
- 114,3 x 6,3 / 4'' S40
- CV-Value:
- 195,2 gal/min
- Kvs-value:
- 170.0 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 100
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- socket weld
- Connection inlet:
- socket weld connection
- Connection dimension outlet:
- 17,2 / 3/8''
- Connection dimension inlet:
- 17,2 / 3/8''
- CV-Value:
- 5,0 gal/min
- Kvs-value:
- 4.3 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 15
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
- Connection outlet:
- socket weld
- Connection inlet:
- socket weld connection
- Connection dimension outlet:
- 18
- Connection dimension inlet:
- 18
- CV-Value:
- 5,0 gal/min
- Kvs-value:
- 4.3 MQH
- Nominal pressure:
- PN 50
- nominal size:
- DN 15
- cleaned for oxygen service:
- ISO 23208
- Maximum allowable temperature:
- 120.0 °C
- Maximum allowable temperature:
- -196.0 °C
