Gate Valve DN100(4") H570
Click on the product image for a larger view.
Gate Valve DN100(4") H570
Article-No.: 09340.0114.0011
Price
POR
Description

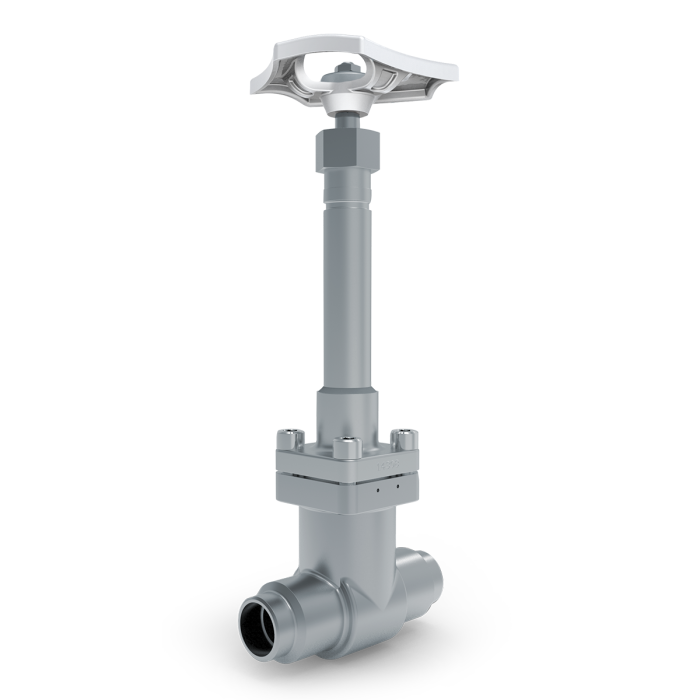

Cryogenic Gate Valve DN100 PN40
cleaned and degreased for oxygen service
with Bonnet Extension H=470 (570)
Working Temperature -196°C up to +120°C
Body 1.4308 st.st.
Bonnet 1.4301 st.st.
Gland packing graphit/PTFE
connection butt weld ø114,3 x 3,05mm
Face to face 130mm
cleaned and degreased for oxygen service
with Bonnet Extension H=470 (570)
Working Temperature -196°C up to +120°C
Body 1.4308 st.st.
Bonnet 1.4301 st.st.
Gland packing graphit/PTFE
connection butt weld ø114,3 x 3,05mm
Face to face 130mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 09340.0114.0011 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_09340 |
| Type (Series) | 09340 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 100 |
| Nominal pressure | PN 40 |
| max. lift | 100.0 |
| Kvs-value | 792.0 MQH |
| body material | 1.4308 |
| CV-Value | 943,0 gal/min |
| installation height | 570.0 MMT |
| Connection dimension inlet | 114,3 x 2,9 / 4'' S10 |
| Connection dimension outlet | 114,3 X 2,9 / 4'' S10 |
| Connection inlet | welding end |
| Connection outlet | welding end |
| Canada approval | CRN 0C15238.5C |
Related Type
Datasheet ID: CR_09340
