Type 09340 - Gate Valve

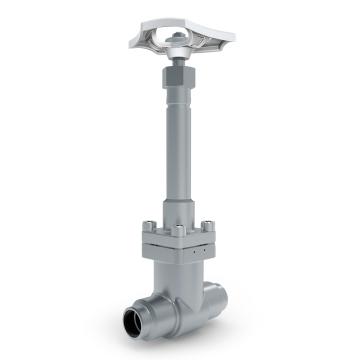

The product shown in the picture may differ from the product sold.
Type 09340 - Gate Valve
Datasheet ID: CR_09340
Price
POR
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Certificates
Pressure Equipment Directive (2014/68/EU)
Transportable Pressure Equipment Directive (2010/35/EU)
type-examination for LNG (DIN EN 12567)
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
Gost Ukraine (Gost Ukraine)
DNV (Class Rules)
RINA (Class Rules)
Data sheets
Operating Instructions
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling |
| SKU | CR_09340 |
Materials
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Valve seal |
PTFE / Carbon filled (25%) |
|
3 |
Disc |
CW614N |
B 283 UNS C38500 |
4 |
Wedge |
1.4308 |
A 351 CF8 |
5 |
Stem |
1.4301 |
A 276 Grade 304 |
6 |
Bonnet gasket |
PTFE |
|
7 |
Headpiece |
1.4308 |
A 351 CF8 |
8 |
Bolts |
1.4301/A2 |
A 194 B8 |
9 |
Elongation tube |
1.4541 |
A 213 TP 321 |
10 |
Gland packing |
Graphite / PTFE / MICA |
|
11 |
Gland nut |
1.4305 |
A 276 Grade 303 |
12 |
Handwheel |
Aluminium alloy |
|
13 |
Bush |
CW452K |
B 159 UNS C51900 |
Versions
Type 09340 - Standard design |
Technical data |
||||||
|---|---|---|---|---|---|---|---|
Nominal size |
DN |
25 |
40 |
50 |
65 |
80 |
100 |
Dimension code |
.X. |
2533 |
4048 |
5060 |
657x |
8088 |
0114 |
Face-to-face dimension |
FF |
133 |
133 |
110 |
110 |
110 |
130 |
Height |
H |
330 |
360 |
410 |
440 |
450 |
570 |
Outside pipe-Ø ISO 1127 |
RA |
33.7 |
48.3 |
60.3 |
76.1 |
88.9 |
114.3 |
Wall thickness pipe ISO 1127 |
a |
2.0 |
2.0 |
2.0 |
2.9 |
3.2 |
3.2 |
Outside pipe-Ø ASTM A312 |
RA |
33.40 |
48.26 |
60.33 |
73.03 |
88.90 |
114.3 |
Wall thickness pipe ASTM A312 |
a |
dimensions acc. to S10 or S40 |
|||||
Socket depth |
b |
8 |
13 |
16 |
16 |
16 |
20 |
Handwheel-Ø |
B |
125 |
125 |
150 |
150 |
150 |
200 |
Weight |
ca. kg |
3.3 |
4.8 |
7.5 |
8.6 |
11.4 |
21.8 |
Kvs - Value |
m³/h |
43 |
93 |
125 |
227 |
310 |
792 |
Cv - Value |
gal/min |
51 |
111 |
149 |
264 |
361 |
924 |
Product Variants
Filter our product by specific attributes| Name | Anschlussart Austritt | Anschlussart Eintritt | Anschlussdimension Austritt | Anschlussdimension Eintritt | Bauhöhe (H) | Cv-Wert | Nennweite | Link to product |
|---|
- ...
- ...
/
Related Type
Article-No.: 09340.4048.0013
Price
POR
POR
Gate Valve DN40(1 1/2") H360
Article-No.: 09340.4048.0013
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_09340
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 40
- Nominal pressure:
- PN 50
- Kvs-value:
- 93.0 MQH
- CV-Value:
- 111.0 gal/min
- installation height:
- 360.0 MMT
- Connection dimension inlet:
- 48,3 X 3,6 / 1.1/2'' S40
- Connection dimension outlet:
- 48,3 X 3,6 / 1.1/2'' S40
- Connection inlet:
- welding end
- Connection outlet:
- welding end
Price
POR
POR
Article-No.: 09340.6576.0024
Price
POR
POR
Gate Valve DN65(2 1/2") H440
Article-No.: 09340.6576.0024
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_09340
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 65
- Nominal pressure:
- PN 50
- Kvs-value:
- 283.0 MQH
- CV-Value:
- 337,0 gal/min
- installation height:
- 440.0 MMT
- Connection dimension inlet:
- 76,1
- Connection dimension outlet:
- 76,1
- Connection inlet:
- socket weld connection
- Connection outlet:
- socket weld
Price
POR
POR
Article-No.: 09340.8088.0021
Price
POR
POR
Gate Valve DN80(3") H450
Article-No.: 09340.8088.0021
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_09340
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 80
- Nominal pressure:
- PN 50
- Kvs-value:
- 310.0 MQH
- CV-Value:
- 369,0 gal/min
- installation height:
- 450.0 MMT
- Connection dimension inlet:
- 88,9 X 3,2 / 3'' S10
- Connection dimension outlet:
- 88,9 X 3,2 / 3'' S10
- Connection inlet:
- welding end
- Connection outlet:
- welding end
Price
POR
POR
Article-No.: 09340.8088.0024
Price
POR
POR
Gate Valve DN80(3") H450
Article-No.: 09340.8088.0024
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_09340
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 80
- Nominal pressure:
- PN 50
- Kvs-value:
- 310.0 MQH
- CV-Value:
- 369,0 gal/min
- installation height:
- 450.0 MMT
- Connection dimension inlet:
- 88,9 / 3''
- Connection dimension outlet:
- 88,9 / 3''
- Connection inlet:
- socket weld connection
- Connection outlet:
- socket weld
Price
POR
POR
Article-No.: 09340.0114.0011
Price
POR
POR
Gate Valve DN100(4") H570
Article-No.: 09340.0114.0011
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_09340
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 100
- Nominal pressure:
- PN 40
- Kvs-value:
- 792.0 MQH
- CV-Value:
- 943,0 gal/min
- installation height:
- 570.0 MMT
- Connection dimension inlet:
- 114,3 x 2,9 / 4'' S10
- Connection dimension outlet:
- 114,3 X 2,9 / 4'' S10
- Connection inlet:
- welding end
- Connection outlet:
- welding end
Price
POR
POR
Article-No.: 09340.0114.0015
Price
POR
POR
Gate Valve DN100(4") H570
Article-No.: 09340.0114.0015
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_09340
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 100
- Nominal pressure:
- PN 50
- Kvs-value:
- 792.0 MQH
- CV-Value:
- 943,0 gal/min
- installation height:
- 570.0 MMT
- Connection dimension inlet:
- 114,3 x 6,3 / 4'' S40
- Connection dimension outlet:
- 114,3 X 6,3 / 4'' S40
- Connection inlet:
- welding end
- Connection outlet:
- welding end
Price
POR
POR
Article-No.: 09340.5060.0025PTF
Price
POR
POR
Gate Valve DN50(2") H410
Article-No.: 09340.5060.0025PTF
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_09340
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 50
- Nominal pressure:
- PN 50
- Kvs-value:
- 125.0 MQH
- CV-Value:
- 149,0 gal/min
- installation height:
- 410.0 MMT
- Connection dimension inlet:
- 60,3 X 4,0 / 2'' S40
- Connection dimension outlet:
- 60,3 X 4,0 / 2'' S40
- Connection inlet:
- welding end
- Connection outlet:
- welding end
Price
POR
POR
Article-No.: 09340.5060.0024
Price
POR
POR
Gate Valve DN50(2") H410
Article-No.: 09340.5060.0024
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling
- HEROSE Type Reference:
- CR_09340
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 50
- Nominal pressure:
- PN 50
- Kvs-value:
- 125.0 MQH
- CV-Value:
- 149,0 gal/min
- installation height:
- 410.0 MMT
- Connection dimension inlet:
- 60,3 / 2''
- Connection dimension outlet:
- 60,3 / 2''
- Connection inlet:
- socket weld connection
- Connection outlet:
- socket weld
Price
POR
POR
