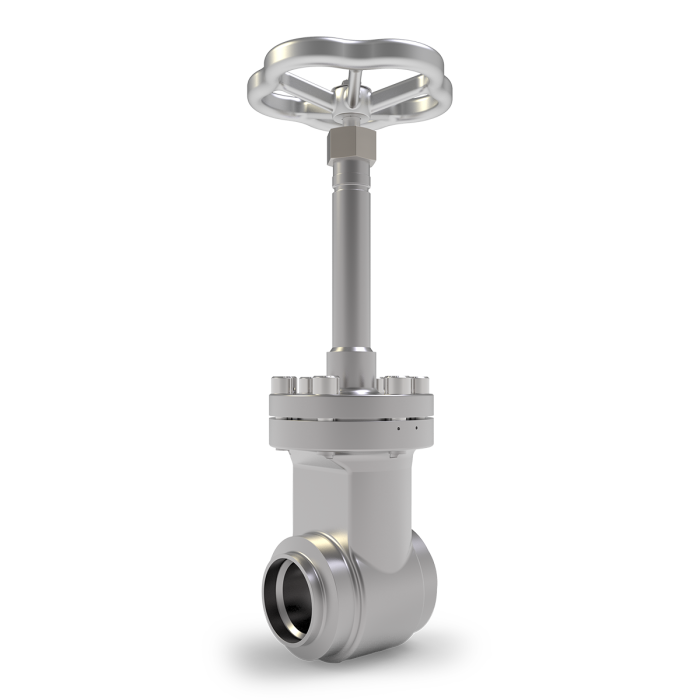

Gate Valve DN50(2") H410
The product shown in the picture may differ from the product sold.
Gate Valve DN50(2") H410
Article-No.: 09340.5060.0022
Price
POR
Description
Cryogenic gate valve DN50 PN50
cleaned and degreased for oxygen service
with bonnet extension H=360mm(410)
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet 1.4301 st.st.
gland packing graphit/PTFE
connection butt weld ø60.3 x 2.77mm
face to face 110mm
cleaned and degreased for oxygen service
with bonnet extension H=360mm(410)
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet 1.4301 st.st.
gland packing graphit/PTFE
connection butt weld ø60.3 x 2.77mm
face to face 110mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 09340.5060.0022 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_09340 |
| Type (Series) | 09340 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 50 |
| Nominal pressure | PN 50 |
| max. lift | 50.0 |
| Kvs-value | 125.0 MQH |
| body material | 1.4308 |
| CV-Value | 149,0 gal/min |
| installation height | 410.0 MMT |
| Connection dimension inlet | 60,3 X 2,6 / 2'' S10 |
| Connection dimension outlet | 60,3 X 2,6 / 2'' S10 |
| Connection inlet | welding end |
| Connection outlet | welding end |
| Canada approval | CRN 0C15238.5C |
