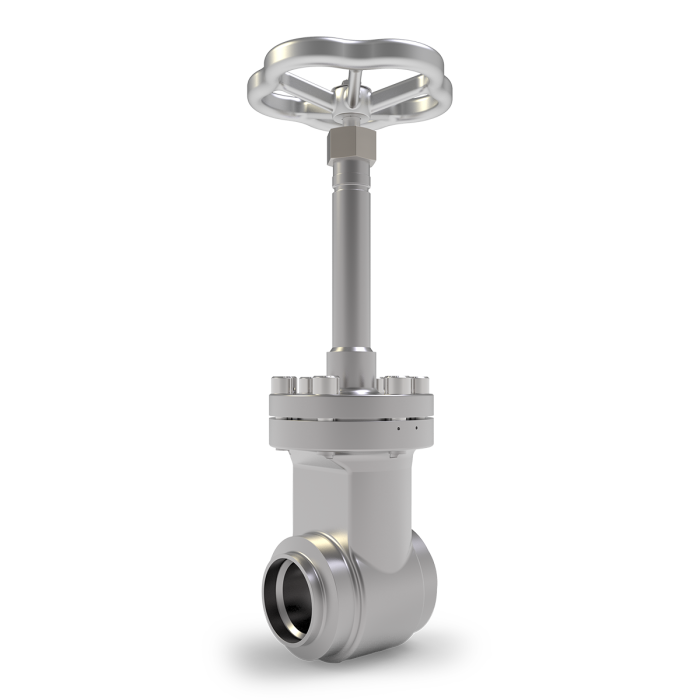

Gate Valve DN65(2 1/2") H440
The product shown in the picture may differ from the product sold.
Gate Valve DN65(2 1/2") H440
Article-No.: 09340.6573.0021
Price
POR
Description
Cryogenic gate valve DN65 PN50
cleaned and degreased for oxygen service
with bonnet extension H=370mm(440)
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet 1.4308 st.st.
gland packing graphit/PTFE
connection butt weld ø73.05 x 3.05mm
face to face 110mm
cleaned and degreased for oxygen service
with bonnet extension H=370mm(440)
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet 1.4308 st.st.
gland packing graphit/PTFE
connection butt weld ø73.05 x 3.05mm
face to face 110mm
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| SKU | 09340.6573.0021 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling |
| HEROSE Type Reference | CR_09340 |
| Type (Series) | 09340 |
| Maximum allowable temperature | -196.0 °C |
| Maximum allowable temperature | 120.0 °C |
| cleaned for oxygen service | ISO 23208 |
| nominal size | DN 65 |
| Nominal pressure | PN 50 |
| max. lift | 65.0 |
| Kvs-value | 283.0 MQH |
| body material | 1.4308 |
| CV-Value | 337,0 gal/min |
| installation height | 440.0 MMT |
| Connection dimension inlet | 2.1/2'' S10 |
| Connection dimension outlet | 2.1/2'' S10 |
| Connection inlet | welding end |
| Connection outlet | welding end |
| Canada approval | CRN 0C15238.5C |
Related Type
Datasheet ID: CR_09340

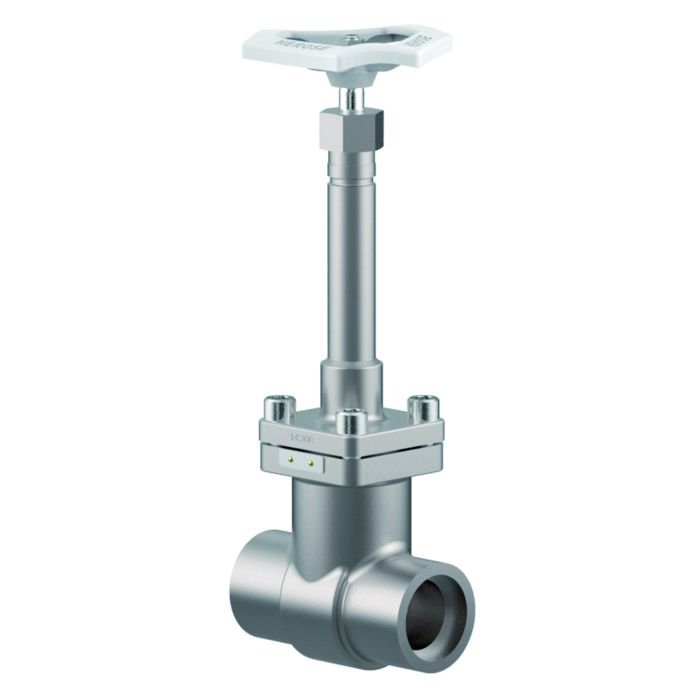

Type 09340 - Gate Valve
Datasheet ID: CR_09340
