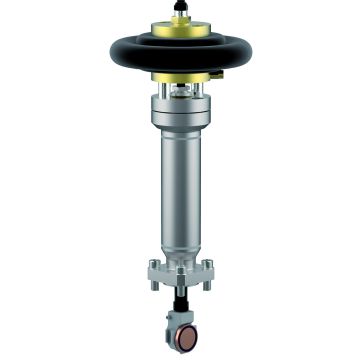

Gate Valve DN65(2 1/2") H630

Article-No.: 09343.6573.T024
Description
Cryogenic gate valve DN65 PN50
cleaned and degreased for oxygen service
with bonnet extension H=565mm(635)
with pneumatic actuator
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet 1.4301 st.st.
gland packing graphit/PTFE
slide bush CW452K bronze
connection socket end OD73.03mm
face to face 110mm
mounted with rubber bellow actuator
test pressure: 5 - 50 bar, leakage class A according to DIN EN 12266
test pressure: 0,7 - 4,9 bar, leakage class B according to DIN EN 12266
air connection for actuator Push-In connection for tube
diameter 8.0mm
More Information
SKU 09343.6573.T024
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
HEROSE Type Reference CR_09343
Type (Series) 09343
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 120.0 °C
cleaned for oxygen service ISO 23208
nominal size DN 65
Nominal pressure PN 50
max. lift 65.0
Kvs-value 283.0 MQH
body material 1.4308
CV-Value 337,0 gal/min
installation height 630.0 MMT
Connection dimension inlet 2.1/2''
Connection dimension outlet 2.1/2''
Connection inlet socket weld connection
Connection outlet socket weld
Canada approval CRN 0C15238.5C
