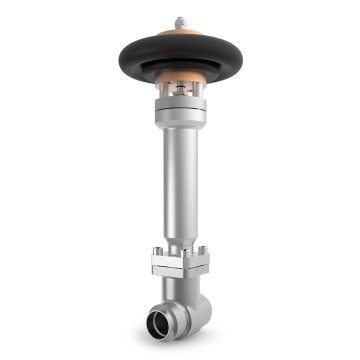

Type 09343 - Actuated Gate Valve
The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Ambient temperature actuator: -50°C / -58°F (223K) up to +70°C / +158°F (343K)
Certificates
Pressure Equipment Directive (2014/68/EU)
Transportable Pressure Equipment Directive (2010/35/EU)
type-examination for LNG (DIN EN 12567)
Gost Ukraine (Gost Ukraine)
DNV (Class Rules)
RINA (Class Rules)
Data sheets
Operating Instructions
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_09343 |
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Valve seal |
PTFE / Carbon filled (25%) |
|
3 |
Disc |
CW614N |
B 283 UNS C38500 |
4 |
Wedge |
1.4308 |
A 351 CF8 |
5 |
Stem |
1.4301 |
A 276 Grade 304 |
6 |
Bonnet gasket |
PTFE |
|
7 |
Headpiece |
1.4308 |
A 351 CF8 |
8 |
Bolts |
1.4301/A2 |
A 194 B8 |
9 |
Elongation tube |
1.4541 |
A 213 TP 321 |
10 |
Spring |
1.4571 |
A 313 Grade 316Ti |
11 |
Flange |
1.4301 |
A 276 Grade 304 |
12 |
Headpiece |
1.4301 |
A 276 Grade 304 |
13 |
Gland packing |
Graphite / PTFE / MICA |
|
14 |
Gland nut |
1.4305 |
A 276 Grade 303 |
15 |
Pillars |
1.4301 |
A 276 Grade 304 |
16 |
Bush |
CW452K |
B 159 UNS C51900 |
17 |
Actuator |
Rubberchuk |
Type 09343 - Standard design |
Technical data |
||||||
|---|---|---|---|---|---|---|---|
Nominal size |
DN |
25 |
40 |
50 |
65 |
80 |
100 |
Dimension code |
.X. |
2533 |
4048 |
5060 |
657x |
8088 |
0114 |
Face-to-face dimension |
FF |
133 |
133 |
110 |
110 |
110 |
130 |
Height |
H |
500 |
560 |
590 |
630 |
650 |
880 |
Outside pipe-Ø ISO 1127 |
RA |
33.7 |
48.3 |
60.3 |
76.1 |
88.9 |
114.3 |
Wall thickness pipe ISO 1127 |
a |
2.9 |
2.0 |
2.0 |
2.9 |
3.2 |
3.2 |
Outside pipe-Ø ASTM A312 |
RA |
33.4 |
48.26 |
60.33 |
73.03 |
88.90 |
114.30 |
Wall thickness pipe ASTM A312 |
a |
dimensions acc. to S10 or S40 |
|||||
Socket depth |
b |
8 |
13 |
16 |
16 |
16 |
20 |
Actuator-Ø |
M |
229 |
229 |
229 |
229 |
229 |
229 |
Weight |
ca. kg |
9.9 |
11.1 |
13.5 |
14.9 |
17.5 |
30.2 |
*Kvs-Value |
m³/h |
43 |
93 |
125 |
227 |
310 |
792 |
*Cv-Value |
gal/min |
51 |
111 |
149 |
264 |
361 |
924 |
Product Variants
