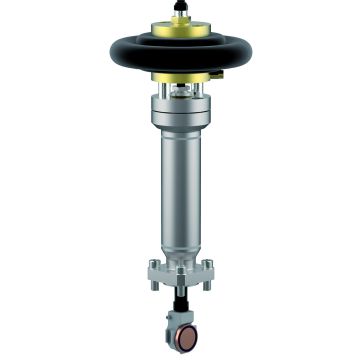

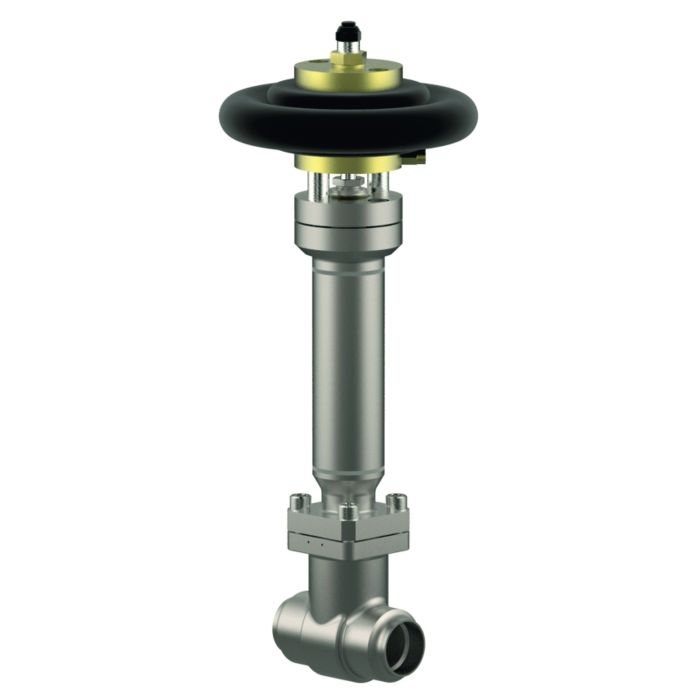

Gate Valve DN80(3") H650

Article-No.: 09343.8088.T021
Description
Cryogenic gate valve DN80 PN50
cleaned and degreased for oxygen service
with bonnet extension H=580mm(650)
with pneumatic actuator
working temperature -196°C up to +120°C
body 1.4308 st.st.
bonnet 1.4301 st.st.
gland packing graphit/PTFE
slide bush CW452K bronze
connection butt weld ø88.9 x 3.05mm (S10)
face to face 110mm
mounted with rubber bellow actuator
test pressure: 5 - 50 bar, leakage class A according to DIN EN 12266
test pressure: 0,7 - 4,9 bar, leakage class B according to DIN EN 12266
air connection for actuator Push-In connection for tube
diameter 8.0mm
More Information
SKU 09343.8088.T021
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
HEROSE Type Reference CR_09343
Type (Series) 09343
Maximum allowable temperature -196.0 °C
Maximum allowable temperature 120.0 °C
cleaned for oxygen service ISO 23208
nominal size DN 80
Nominal pressure PN 50
max. lift 70.0
Kvs-value 310.0 MQH
body material 1.4308
CV-Value 369,0 gal/min
installation height 650.0 MMT
Connection dimension inlet 88,9 X 3,2 / 3'' S10
Connection dimension outlet 88,9 X 3,2 / 3'' S10
Connection inlet welding end
Connection outlet welding end
Canada approval CRN 0C15238.5C
