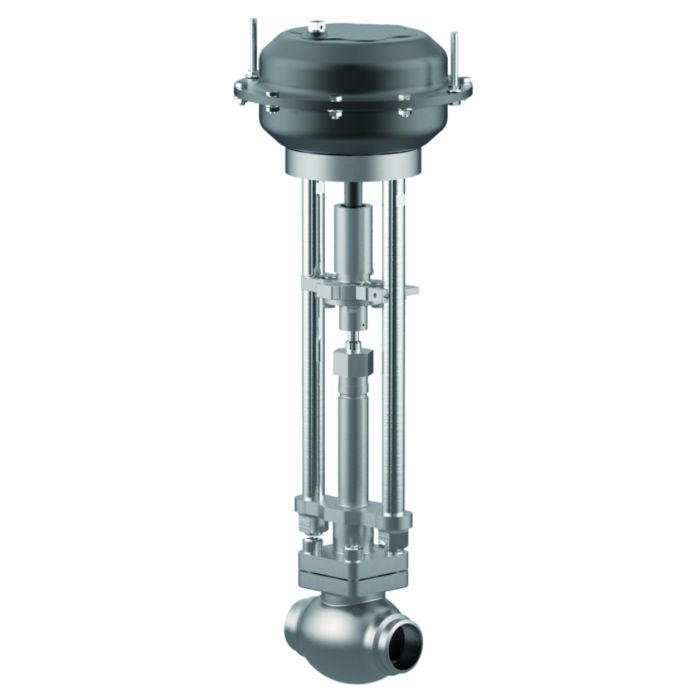

Type 01343 - Actuated Control Valve
The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Certificates
EAC - Eurasian Conformity (032/2013)
EAC - Eurasian Conformity (010/2011)
ABS (Class Rules)
Transportable Pressure Equipment Directive (2010/35/EU)
type-examination for LNG (DIN EN 12567)
Gost Ukraine (Gost Ukraine)
ClassNK (Class Rules)
License of Special Equipment (China) (TS)
DNV (Class Rules)
Korean Gas Safety (KGS)
Pressure Equipment Directive (2014/68/EU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
BV (Class Rules)
RINA (Class Rules)
CCS (Class Rules)
Operating Instructions
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_01343 |

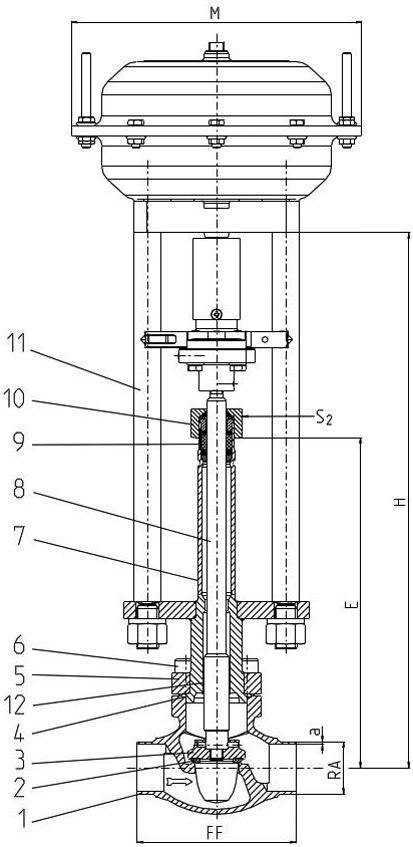

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Valve seal up to DN50 |
PTFE / Carbon filled (25%) |
|
2a |
Valve seal from DN65 |
PTFE |
|
3 |
Disc |
1.4301 |
A 276 Grade 304 |
4 |
Bonnet gasket |
PTFE |
|
5 |
Headpiece |
1.4301 |
A 276 Grade 304 |
6 |
Bolts |
1.4301/A2 |
A 194 B8 |
7 |
Elongation tube |
1.4541 |
A 213 TP 321 |
8 |
Stem |
1.4301 |
A 276 Grade 304 |
9 |
Gland packing |
Graphite / PTFE / MICA |
|
10 |
Gland nut |
1.4305 |
A 276 Grade 303 |
11 |
Pillars |
1.4404 |
A 276 Grade 316L |
12 |
Bush |
CW452K |
B 159 UNS C51900 |
Type 01343 - Standard design |
Technical data |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Nominal size |
DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
Dimension code |
.X. |
1521 |
2026 |
2533 |
3238 |
4048 |
5060 |
657x |
8088 |
0114 |
Face-to-face dimension |
FF |
85 |
100 |
115 |
115 |
130 |
155 |
205 |
245 |
280 |
Height |
H |
370 |
370 |
375 |
405 |
420 |
425 |
510 |
575 |
635 |
Length |
E |
195 |
200 |
200 |
230 |
230 |
235 |
300 |
300 |
300 |
Outside pipe-Ø ISO 1127 |
RA |
21.3 |
26.9 |
33.7 |
38.0 |
48.3 |
60.3 |
76.1 |
88.9 |
114.3 |
Wall thickness pipe ISO 1127 |
a |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.9 |
3.2 |
6.0 |
Outside pipe-Ø ASTM A312 |
RA |
21.34 |
26.67 |
33.4 |
- |
48.26 |
60.33 |
73.03 |
88.90 |
114.3 |
Wall thickness pipe ASTM A312 |
a |
dimensions acc. to S10 or S40 |
||||||||
Socket depth |
b |
10 |
13 |
13 |
- |
13 |
16 |
16 |
16 |
20 |
Actuator-Ø |
M |
|||||||||
Wrench size across flats |
S2 |
30 |
30 |
30 |
36 |
36 |
36 |
36 |
36 |
41 |
Weight w/o actuator |
ca. kg |
2.2 |
2.4 |
3.1 |
3.8 |
6.5 |
9.0 |
15.2 |
20.0 |
28.0 |
Stroke |
mm |
20 |
20 |
20 |
30 |
40 |
30 |
40 |
40 |
40 |
