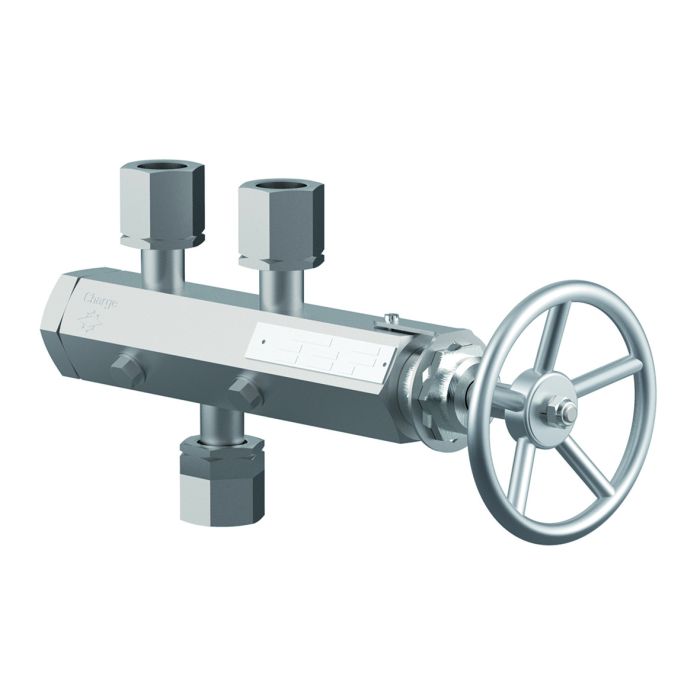

Type 06401 - Changeover Valve DN15

Datasheet ID: CR_06401_1
Field of application

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +185°C / +365°F (458K)

Certificates
EAC - Eurasian Conformity (010/2011)
type-examination for LNG (DIN EN 12567)
Gost Ukraine (Gost Ukraine)
Operating Instructions
More Information
Solution H2, LNG, Air Gases
Solution Area Manufacturing, Transport, Storage, Application, Refueling
SKU CR_06401_1

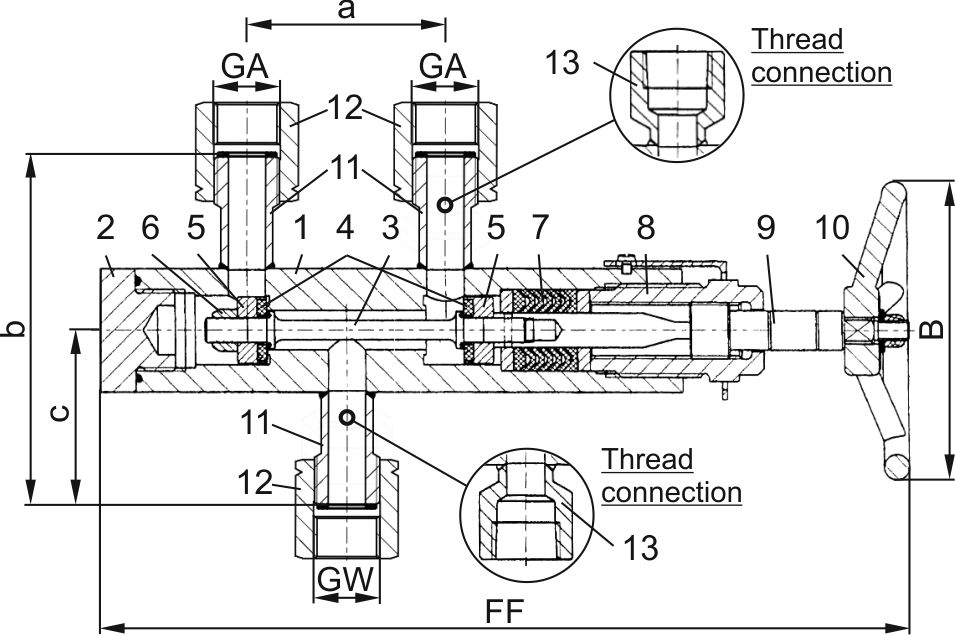

Materials

Materials

DIN EN

ASTM

1

Body

1.4571

A 276 Grade 316Ti

2

Plug

1.4571

A 276 Grade 316Ti

3

Disc stem

1.4571

A 276 Grade 316Ti

4

Valve seal

PTFE / Carbon filled (25%)

5

Disc

1.4571

A 276 Grade 316Ti

6

Disc nut

1.4301/A2

A 194 B8

7

Gland packing

PTFE / Carbon filled (25%)

8

Head piece

CW452K

nickel plated

B 159 UNS C51900 nickel plated

9

Stem

1.4571

A 276 Grade 316Ti

10

Handwheel

Aluminium alloy

11

Welding piece

1.4571

A 276 Grade 316Ti

12

Locking sleeve

1.4571

A 276 Grade 316Ti

13

Thread connection

1.4571

A 276 Grade 316Ti
Versions

Typ 06401 - Standard design

Technical data

Nominal size

DN

15

Inlet

GW

G 3/4

Outlet

GA

G 3/4

Face-to-face dimension

FF

325

Handwheel-Ø

B

120

Length

a

80

Height

b

140

Length

c

70

Weight

ca. kg

5.0

Kvs - Value, one side open

m³/h

4.0

Cv - Value, one side open

gal /min

4.6

Kvs - Value, central position

m³/h

5.8

Cv - Value, central position

gal /min

6.7
