Type 08417 - Strainer

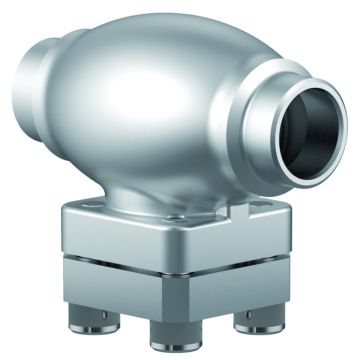

The product shown in the picture may differ from the product sold.
Type 08417 - Strainer
Datasheet ID: CR_08417_1
Price
POR
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Certificates
type-examination for LNG (DIN EN 12567)
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
Gost Ukraine (Gost Ukraine)
DNV (Class Rules)
BV (Class Rules)
RINA (Class Rules)
Pressure Equipment Directive (2014/68/EU)
CCS (Class Rules)
Data sheets
Operating Instructions
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_08417_1 |
Materials
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Strainer screen |
1.4301 |
A 240 Grade 304 |
3 |
Bonnet gasket |
PTFE |
|
4 |
Bolts |
1.4301/A2 |
A 194 B8 |
5 |
Cap |
1.4301 |
A 276 Grade 304 |
Versions
Type 08417 - Standard design |
Technical data |
|
|---|---|---|
Nominal size |
DN |
200 |
Dimension code |
.X. |
0219 |
Face-to-face dimension |
FF |
560 |
Height |
H |
285 |
Outside pipe-Ø ISO 1127 |
RA |
219.1 |
Wall thickness pipe ISO 1127 |
a |
6.3 |
Outside pipe-Ø ASTM A312 |
RA |
219.1 |
Wall thickness pipe ASTM A312 |
a |
dimensions acc. to S10 or S40 |
Socket depth |
b |
15 |
Weight |
ca. kg |
100 |
Kvs-Value |
m³/h |
468 |
Cv-Value |
gal/min |
541.1 |
Product Variants
Filter our product by specific attributes| Name | Anschlussart Austritt | Anschlussart Eintritt | Anschlussdimension Austritt | Anschlussdimension Eintritt | Cv-Wert | Nennweite | Link to product |
|---|
- ...
- ...
/
Related Type
Article-No.: 08417.1521.0501
Price
Price on request
POR
Strainer DN15(1/2") 56mesh
Article-No.: 08417.1521.0501
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_08417
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 15
- Nominal pressure:
- PN 50
- Kvs-value:
- 3.6 MQH
- CV-Value:
- 4,2 gal/min
- Connection dimension inlet:
- 21,3 x 2,0 / 1/2'' S10
- Connection dimension outlet:
- 21,3 X 2,0 / 1/2'' S10
- Connection inlet:
- welding end
- Connection outlet:
- welding end
Price
Price on request
POR
Article-No.: 08417.0219.0004
Price
Price on request
POR
Strainer DN200(8") 56mesh
Article-No.: 08417.0219.0004
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_08417_1
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 200
- Nominal pressure:
- PN 25
- Kvs-value:
- 680.0 MQH
- CV-Value:
- 786,0 gal/min
- Connection dimension inlet:
- 219,1
- Connection dimension outlet:
- 219,1
- Connection inlet:
- socket weld connection
- Connection outlet:
- socket weld
Price
Price on request
POR
Article-No.: 08417.1517.0674
Price
Price on request
POR
Strainer DN15(1/2") 30µM
Article-No.: 08417.1517.0674
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_08417
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 15
- Nominal pressure:
- PN 50
- Kvs-value:
- 2.3 MQH
- CV-Value:
- 2,7 gal/min
- Connection dimension inlet:
- 17,2 / 3/8''
- Connection dimension outlet:
- 17,2 / 3/8''
- Connection inlet:
- socket weld connection
- Connection outlet:
- socket weld
Price
Price on request
POR
Article-No.: 08417.1521.0001
Price
Price on request
POR
Strainer DN15(1/2") 56mesh
Article-No.: 08417.1521.0001
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_08417
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 15
- Nominal pressure:
- PN 50
- Kvs-value:
- 3.6 MQH
- CV-Value:
- 4,2 gal/min
- Connection dimension inlet:
- 21,3 x 2,0 / 1/2'' S10
- Connection dimension outlet:
- 21,3 X 2,0 / 1/2'' S10
- Connection inlet:
- welding end
- Connection outlet:
- welding end
Price
Price on request
POR
Article-No.: 08417.1521.0071
Price
Price on request
POR
Strainer DN15(1/2") 30µM
Article-No.: 08417.1521.0071
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_08417
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 15
- Nominal pressure:
- PN 50
- Kvs-value:
- 2.3 MQH
- CV-Value:
- 2,7 gal/min
- Connection dimension inlet:
- 21,3 x 2,0 / 1/2'' S10
- Connection dimension outlet:
- 21,3 X 2,0 / 1/2'' S10
- Connection inlet:
- welding end
- Connection outlet:
- welding end
Price
Price on request
POR
Article-No.: 08417.2026.0001
Price
Price on request
POR
Strainer DN20(3/4") 56mesh
Article-No.: 08417.2026.0001
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_08417_1
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 20
- Nominal pressure:
- PN 50
- Kvs-value:
- 6.6 MQH
- CV-Value:
- 7,6 gal/min
- Connection dimension inlet:
- 26,9 x 2,6
- Connection dimension outlet:
- 26,9 X 2,6
- Connection inlet:
- welding end
- Connection outlet:
- welding end
Price
Price on request
POR
Article-No.: 08417.2026.0004
Price
Price on request
POR
Strainer DN20(3/4") 56mesh
Article-No.: 08417.2026.0004
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_08417_1
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 20
- Nominal pressure:
- PN 50
- Kvs-value:
- 6.6 MQH
- CV-Value:
- 7,6 gal/min
- Connection dimension inlet:
- 26,9 / 3/4''
- Connection dimension outlet:
- 26,9 / 3/4''
- Connection inlet:
- socket weld connection
- Connection outlet:
- socket weld
Price
Price on request
POR
Article-No.: 08417.2026.0005
Price
Price on request
POR
Strainer DN20(3/4") 56mesh
Article-No.: 08417.2026.0005
- Solution:
- LNG, Air Gases
- Solution Area:
- Transport, Storage, Refueling, Processes
- HEROSE Type Reference:
- CR_08417_1
- Maximum allowable temperature:
- -196.0 °C
- Maximum allowable temperature:
- 120.0 °C
- cleaned for oxygen service:
- ISO 23208
- nominal size:
- DN 20
- Nominal pressure:
- PN 50
- Kvs-value:
- 6.6 MQH
- CV-Value:
- 7,6 gal/min
- Connection dimension inlet:
- 26,9 x 2,0 / 3/4'' S10
- Connection dimension outlet:
- 26,9 X 2,0 / 3/4'' S10
- Connection inlet:
- welding end
- Connection outlet:
- welding end
Price
Price on request
POR
